Process Sensor
pH sensor for common process

Technical feature:

·

Adoption of the most advanced large Teflon diaphragm ,which makes the sensor with stable liquid juntion.

·

Strong anti-interference ability,it is not easy to be polluted and blocked,so it has a  long life.

·

The reference system is filled with the high polymer; convenient use; it is unnecessary to refilling electrolyte.

·

Sensitive response of the sensor ,the 95% measured value  can be reached up in several seconds.

·

pH range: 0～14pH the temperature range:0～110℃.

·

Pressure resistance of the sensor:0.6MPa and the zero point E0=7pH .

·

The external dimension of the sensor is φ12x120, 225,360mm or other dimensions.



The common industrial process includes the following fields :

1. Chemical industry

2. Petrochemical industry

3. Sugar industry

4. Swimming pool water, sea water , underground water

5. High temperature and strong acid occasion ,high temperature and strong base occasion

6. Other industry

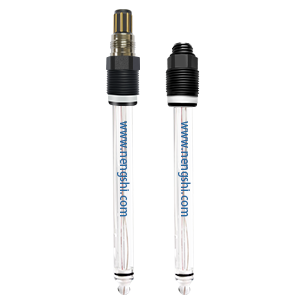

  • Shown as the figure:

    · Direct use with various pH meters as a complete set.

    · Plug-in connection, convenient to installation and replacement.

    · pH range:0-14; Zero point: E0=7pH; Temperature rang: 0-110℃.

    · Pressure range：0.6MPa.

    · The external dimension of the sensor isΦ12×120,225mm or other size.

    · It can be installed with the thread PG13.5.

    · The outer tube material : glass.

    · The thermistor is Pt100、Pt1000、2.252K、10K、22K etc.

    Selection of model:

    · ASP2121 combination sensor

      ASP3151 combination sensor with thermistor

                      (Please note the value of the thermistor when order)

  • Shown as the figure
    · Direct use with various pH meters as a complete set.
    · The sensor has the fixed cable and the length of the cable can be adjusted according
       to the requirements of the users.

    · It can be installed with the thread PG13.5.

    · pH range:0-14; Zero point: E0=7pH; Temperature rang: 0-110℃.

    · Pressure range：0.6MPa.

    · The external dimension of the sensor isΦ12×120,225mm or other size.

    · The outer tube material : glass.

    · The thermistor is Pt100、Pt1000、2.252K、10K、22K etc.

    Selection of model:

    ·  ASP2111 combination sensor

    ·  ASP3111 combination sensor with thermistor

                       (Please note the value of the thermistor when order)

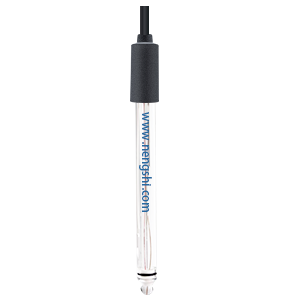

  • Shown as the figure
    · Direct use with various pH meters as a complete set.

    · The sensor has the fixed cable and the length of the cable can be adjusted according

       to the requirements of the users.

    · pH range:0-14;Zero point: E0=7pH; Temperature rang: 0-110℃.

    · Pressure range：0.6MPa.

    · The external dimension of the sensor isΦ12×120,225mm or other size.

    · The outer tube material : glass.

    · The thermistor is Pt100、Pt1000、2.252K、10K、22K etc.

    Selection of model:
    · ASP2101 combination sensor

    · ASP3101 combinatin sensor with thermistor

                      (Please note the value of the thermistor when order)

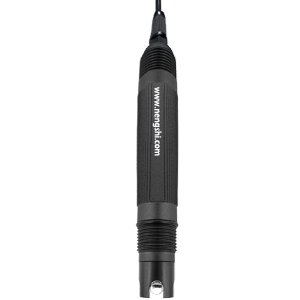

  • Shown as the figure:
    · Direct use with various pH meters as a complete set.
    · Installation with 3/4NPT pipe thread,with safe and reliable sealing.

    · The sensor has the fixed cable and the length of the cable can be adjusted according

       to the requirements of the users.

    · pH range:0-14;Zero point: E0=7pH; Temperature rang: 0-110℃.

    · Pressure range：0.6MPa.

    · The external dimension of the sensor isΦ26×165mm.

    · The outer tube material : PPS plastic.
    · The thermistor is Pt100、Pt1000、2.252K、10K、22K etc.
    Selection of model:
    · PC2121 combination sensor

    · ASPS2121 combination sensor with thermistor

                        (Please note the value of the thermistor when order)

    · ASPRT2121 pH,ORP, temperature three in one combination sensor

                          (Please note the value of the thermistor when order)

    · ASPCT2121 pH,conductivity ,temperature three in one combination sensor

                          (Please note the value of the thermistor when order)

    · ASPRCT2121 pH,ORP,conductivity ,temperature four in one combination sensor

                            (Please note the value of the thermistor when order)

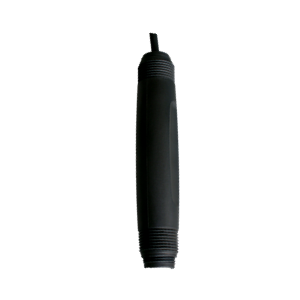

  • Shown as the figure:

    · Direct use with various pH meters as a complete set.

    · Installation with 3/4NPT pipe thread,with safe and reliable sealing.

    · The sensor has the fixed cable and the length of the cable can be adjusted according

       to the requirements of the users.

    · pH range:0-14; Zero point: E0=7pH; Temperature rang : 0-110℃.

    · Pressure range：0.6MPa.

    · The external dimension of the sensor isΦ26×150mm.

    · The outer tube material : PPS plastic.

    · Sensitive meterial : plane sensitive glass membrane, not easily broken.

    · The thermistor is Pt100、Pt1000、2.252K、10K、22K etc.

    Selection of model:

    · ASPS2801 combination sensor

    · ASPS3801 combination sensor with thermistor

                        (Please note the value of the thermistor when order)

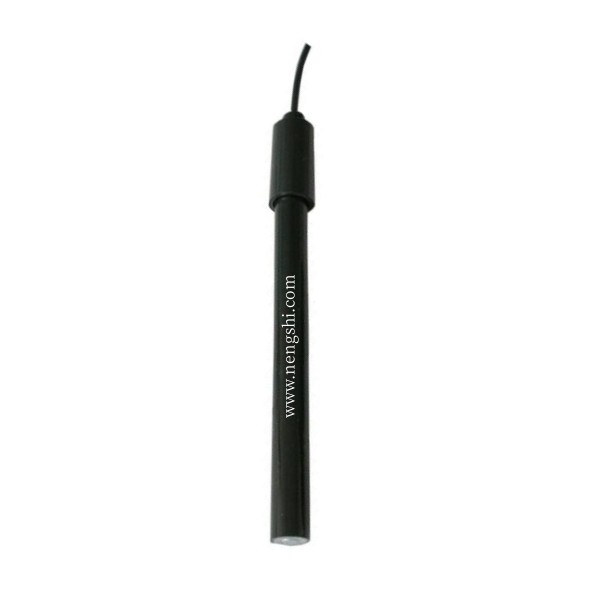

  • Shown as the picture

    · It is unnecessary to refilling KCL solution.

    · pH range: 0-14.

    · Temperature rang: 0-80℃.

    · The external dimension of the sensor is φ12x120mm.

    · The outer tube material : plastic (blue, black, white or other colour optional).

    · The sensor with the thermistor: Pt100,Pt1000,2k,10k,22k etc.

    Selection of model:

    · ASPDJ200  combination sensor ( colour optional)

    · ASP300  combination sensor with thermistor

                    (Please note the value of the thermistor and colour when order)

  • Shown as the picture

    · It is unnecessary to refilling KCL solution.

    · The sensor has the fixed cable and the length of the cable can be adjusted

       according to the requirements of the users.

    · It can be installed with the thread PG13.5.

    · pH range: 0-14.

    · Temperature range: 0-80℃.

    · The external dimension of the sensor : φ12x120 mm.

    · The outer tube material : plastic (blue, black, white or other colour optional).

    Selection of model:

    · ASPDJ201 combination sensor (colour optional)

    · ASPDJ301 combination sensor with thermistor

                       (Please note the value of the thermistor and colour when order)

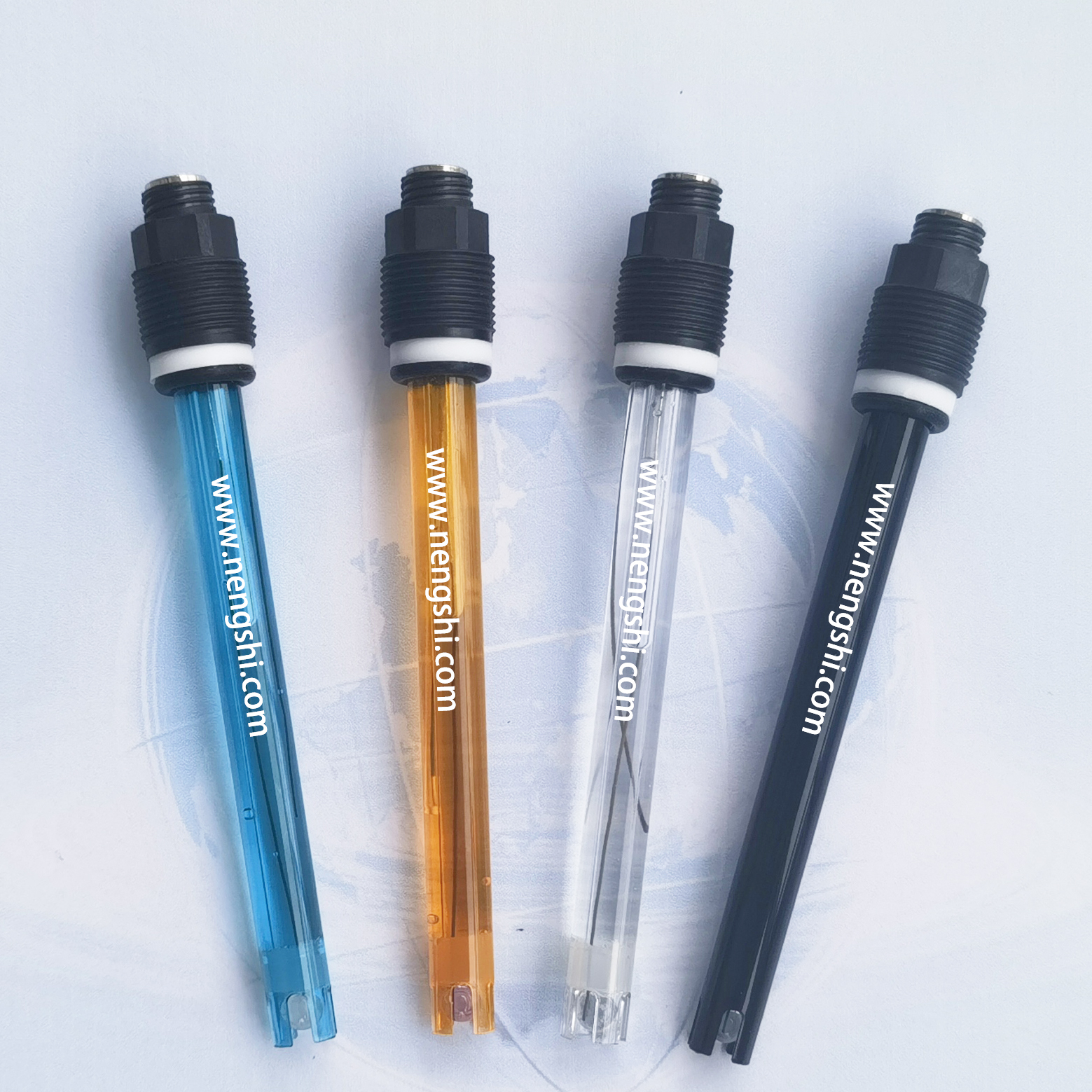

  • Shown as the picture

    · It is unnecessary to refilling KCL solution.

    · Plug-in connection,convenient to installation and replacement .

    · S8 screw cap or VP connector, PG13.5 thread.

    · pH range: 0-14.

    · Temperature rang: 0-80℃.

    · The external dimension of the sensor is φ12x120mm.

    · The outer tube material : plastic (blue, black, white or other colour).

    · The sensor with the thermistor: Pt100,Pt1000,2k,10k,22k etc.

    Selection of model:

    · ASPDJ202 combination sensor (colour optional)

    · ASPDJ305 combination sensor with thermistor

                        (Please note the value of the thermistor and colour when order)

  • Shown as the picture

    · It is unnecessary to refilling KCL solution.

    · Plug-in connection,convenient to installation and replacement .

    · S7 screw cap.

    · pH range: 0-14.

    · Temperature rang: 0-80℃.

    · The external dimension of the sensor is φ12x120mm.

    · The outer tube material : plastic (blue, black, white or other colour).

    Selection of model:

    · ASPDJ208  combination sensor (colour optional)

  • Shown as the picture

    · pH range: 0-14.

    · Temperature rang: 0-80℃.

    · The external dimension of the sensor : φ12x120mm.

    · The outer tube material : plastic.

    · Sensitive material : Plane sensitive glass membrane, not easily broken.

    Selection of model:

    · ASPP280 combination sensor

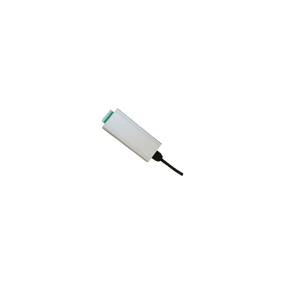

  • PT3000 pH digital module

    · It can directly connect with analog pH sensor .

    · It can convert analog signals to digital signals.



    Selcction of model:

    ·  PT3000 pH digital module with RS485 output
