Lab Sensor
pH sensor

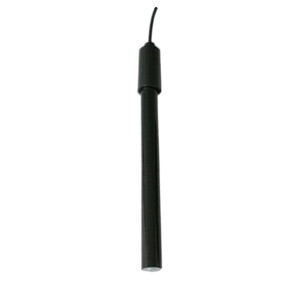

  • Shown as the figure:
    · It is the combination sensor for lab.
    · it is unnecessary to refilling KCL solution.
    · pH range: 0-14.
    · Temperature rang: 0-80℃.
    · The external dimension of the sensor is φ12x120mm.
    · The outer tube material : plastic(blue, black, white or other colour).
    Selection of model:
    · For general occasion:
      ASP200-1  (black)
      ASP200-2  (blue)

      ASP200-3  (transparent)

      ASP200-4  (light blue)

      ASP200-5  (yellow)

    · Double junction:
      ASPDJ200-1  (black)
      ASPDJ200-2  (blue)

      ASPDJ200-3  (transparent)

      ASPDJ200-4  (light blue)

      ASPDJ200-5  (yellow)

    · The sensor with the thermistor: Pt100,Pt1000,10k,22k etc.
      ASP300-1  (black)
      ASP300-2  (blue)

      ASP300-3  (transparent)

      ASP300-4  (light blue)

      ASP300-5  (yellow)

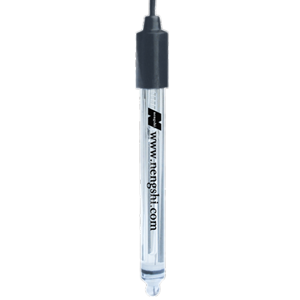

  • Shown as the figure:
    · It is refilling KCL solution for lab.
    · pH range: 0-14.
    · Temperature rang: 0-80℃.
    · The external dimension of the sensor is φ12x120mm.
    · The outer tube material : plastic(blue, black, white or other colour).
    Selection of model:
    · For common occasion:
      ASP200C-1  (black)
      ASP200C-2  (blue)

      ASP200C-3  (transparent)

      ASP200C-4  (light blue)

      ASP200C-5  (yellow)

    · Double junction:
      ASPDJ200C-1  (black)
      ASPDJ200C-2  (blue)

      ASPDJ200C-3  (transparent)

      ASPDJ200C-4  (light blue)

      ASPDJ200C-5  (yellow)

    · The sensor with the thermistor: Pt100,Pt100,10K,22K etc.
      ASP300C-1  (black)
      ASP300C-2  (blue)

      ASP300C-3  (transparent)

      ASP200C-4  (light blue)

      ASP200C-5  (yellow)

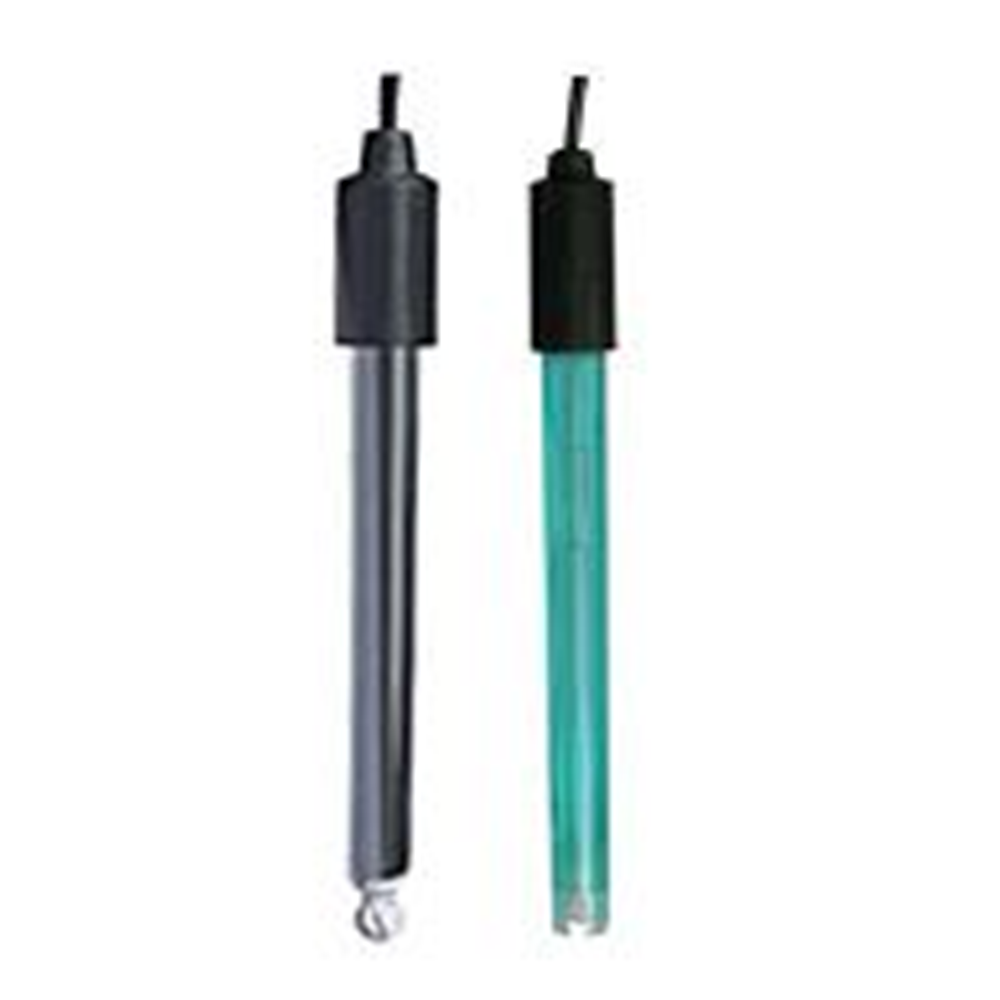

  • Shown as the figure:

    · It is the combination sensor for lab.

    · It is unnecessary to refilling KCL solution.

    · pH range: 0-14.
    · Temperature rang: 0-80℃.
    · The external dimension of the sensor is φ12x120mm.
    · The outer tube material : glass.
    Selection of model:

    · For common occasion

       ASP200G  two in one combination sensor

    · Double junction

       ASPDJ200G two in one combination sensor

       ASP300G  three in one combination sensor, the sensor with the

        thermistor: Pt100,Pt1000,10k,22k etc.

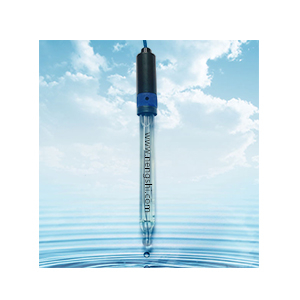

  • Shown as the figure:
    · It is the refilling combination sensor for lab.
    · pH range: 0-14.
    · The external dimension of the sensor is φ12x120mm.
    · Temperature rang: 0-80℃.
    · The outer tube material : glass.
    Selection of model:

    · For common occasion

      ASP200GC  two in one combination sensor

    · Double junction

      ASPDJ200GC  two in one combination sensor

      ASP300GC  three in one combination sensor ,the sensor with the

      thermistor: Pt100,Pt1000,10k,22k etc.

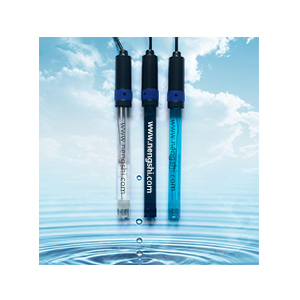

  • Shown as the figure:
    · It is the plane combination sensor for lab.
    · pH range: 0-14.
    · Temperature rang: 0-80℃.
    · The external dimension of the sensor : φ12x120mm.
    · The outer tube material : plastic.
    · Sensitive material: Plane sensitive glass membrane, not easily broken.
    Selection of model:
    · For common occasion:
      ASPP280-1  (black)
      ASPP280-2  (blue)

      ASPP280-3  (transparent)

      ASPP280-4  (light blue)

      ASPP280-5 (yellow)

    · Refilling sensor:
      ASPP280C-1  (black)
      ASPP280C-2  (blue)
      ASPP280C-3  (transparent)
      ASPP280C-4  (light blue)
      ASPP280C-5 (yellow)
  • Shown as the figure:
    · It is the single-glass sensor for lab.
    · pH range: 0-14.
    · Temperature rang: 0-80℃.
    · The external dimension of the sensor : φ12x120mm.
    · The outer tube material : glass or plastic.
    Selection of model:
    · GS4211 single-glass sensor (glass outer tube)
    · SS4211  single-glass sensor (plastic outer tube)
  • Shown as the figure:
    · It is the single-reference sensor for lab.
    · pH range: 0-14.
    · Temperature rang: 0-80℃.
    · The external dimension of the sensor is φ12x120mm.
    · The outer tube material : glass or plastic.
    Selection of model:
    · PR3101   single reference pH sensor（glass outer tube）
    · PR3101C  Refillable single reference pH sensor (glass outer tube)
    · PRS3101 single reference pH sensor(Plastic outer tube)
    · PRS3101C Refillable single reference pH sensor( plastic outer tube)
